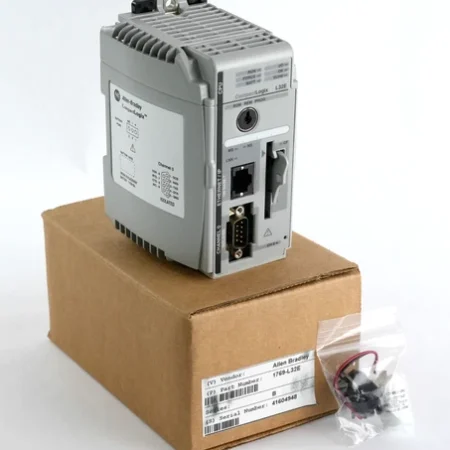

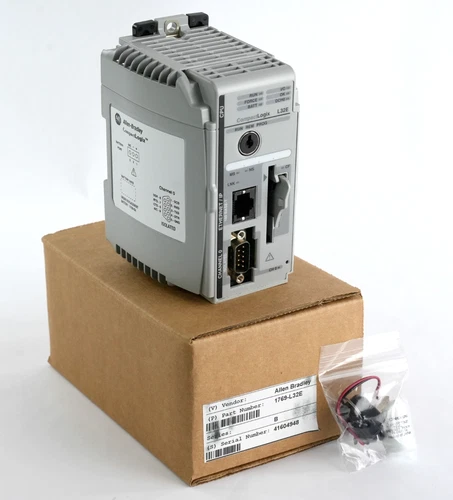

Allen-Bradley 1769-L32E CompactLogix 5370 Controller

Description

The Allen-Bradley 1769-L32E is a CompactLogix 5370 controller, part of the Rockwell Automation ControlLogix and CompactLogix series. Here’s a breakdown of its specifications, features, and applications:

Specifications:
CPU: 625 MHz ARM Cortex-A9 dual-core processor
Memory: 512 KB RAM, 2 MB non-volatile flash memory
Communication: 2 Ethernet ports (DLR, DLR), EtherNet/IP, DeviceNet, ControlNet
Analog I/O: None onboard, expandable with modules
Digital I/O: None onboard, expandable with modules
Power supply: Requires separate 1769-PA2 or 1769-PB2 power supply
Operating temperature: 0 to 60°C (32 to 140°F)
Mounting: DIN rail or panel mount

Features:
Supports IEC 61131-3 programming languages (Ladder Logic, Structured Text, Instruction List, Function Block Diagram)
Integrated motion capabilities for simple axis control
Onboard security features including user authentication and password protection
Web server functionality for remote monitoring and configuration
Supports a wide range of communication protocols
Compact size for space-constrained applications

Applications:
Machine control
Material handling
Process control
Data acquisition
Building automation
And many more
