Description

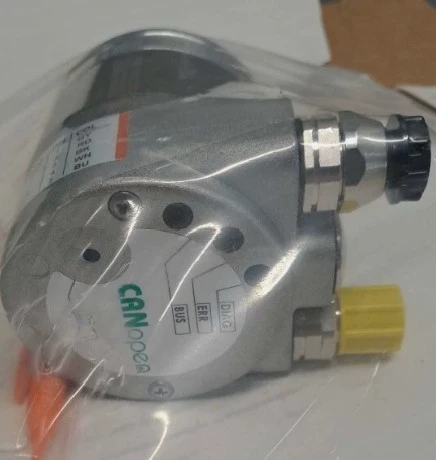

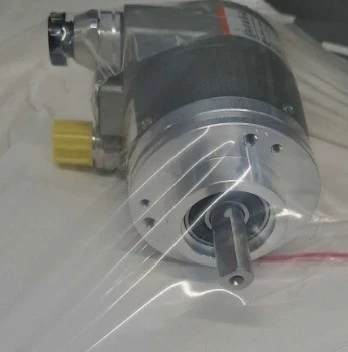

KUBLER 8.5858.1222.2113
High-precision absolute single-turn encoder with robust IP67 housing for demanding industrial environments
| Brand | KUBLER |
| Model | 8.5858.1222.2113 |
| Voltage | 10-30V DC |
| Country of Origin | Germany |
| Weight | 0.15 kg |
| Dimensions | 58x58x35 mm |
| Warranty | 24 months |
| Certifications | CE, UL, RoHS |
| SKU / MPN | 8.5858.1222.2113 |
| What’s in the box | Encoder unit, mounting accessories, quick start guide |
| Resolution | 13 bit (8192 steps per revolution) |
| Output Interface | SSI / BiSS-C |
| Shaft Type | Solid shaft, 10 mm diameter |
| Protection Class | IP67 |
| Operating Temperature | -40°C to +85°C |
| Housing Material | Stainless steel |
Key benefits: High resolution 13-bit, SSI/BiSS-C interface, stainless steel housing, wide temperature range, long service life
Typical applications: Servo motor feedback, robotics, CNC machines, packaging machinery, conveyor systems
Lifecycle: Active product, 10+ years availability
