Confirm the complete 05-50077-01 part number and series from the product label.

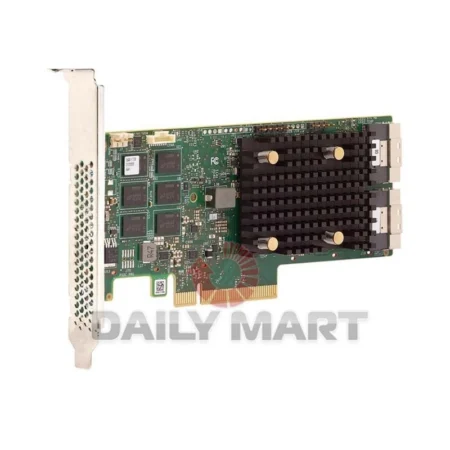

Product imageRepresentative image. Confirm the exact label and configuration in the quotation.
Industrial productPart number: 05-50077-01
BROADCOM 05-50077-01 PCI-Express 4.0 x8 PCI-Express Mega 9560-8i RAID Control
- Part number
- 05-50077-01
- Availability
- In stock
- Category
- Industrial Networking & Communication
- Subcategory
- Network Accessories
✓ Part-number review✓ Condition stated in quote✓ Worldwide delivery options
Product overview
05-50077-01 product information
BROADCOM 05-50077-01 PCI-Express 4.0 x8 PCI-Express Mega 9560-8i RAID Control
High-performance PCIe 4.0 x8 RAID controller delivering advanced data protection and storage scalability for enterprise environments.
| Brand | Broadcom |
| Model | 05-50077-01 MegaRAID 9560-8i |
| Voltage | 12V DC |
| Country of Origin | China |
| Weight | 0.25 kg (approx.) |
| Dimensions | 167mm x 111mm (Standard PCIe Full Height) |
| Warranty | 3 years limited warranty |
| Certifications | CE, FCC, RoHS |
| SKU / MPN | 05-50077-01 |
| What’s in the box | RAID Controller Card, SAS Cables, Quick Installation Guide, Driver CD |
| Interface | PCI-Express 4.0 x8 |
| Supported Drives | Up to 8 SAS/SATA drives |
| RAID Levels | 0, 1, 5, 6, 10, 50, 60 |
| Cache Memory | 2GB DDR4 |
| Max Data Transfer Rate | Up to 12 Gb/s per port |
| Operating Temperature | 0°C to 55°C |
Compatibility01 02 03 04
Confirm the complete system—not only the model number
Industrial components can differ by series, firmware, voltage, network, terminal base, memory, accessories and approvals. A matching front label does not by itself guarantee a drop-in replacement.
Send the existing system or application information when compatibility matters.
State quantity, preferred condition, destination and required delivery date.
Include a clear nameplate photo when the revision is uncertain.
Supply condition
Know what is being quoted
The offered condition and inspection scope should be written into the quotation. Do not assume every source uses condition terms in the same way.
New product
Ask whether the unit is factory sealed, open-box or unused surplus, and confirm packaging when relevant.
Unused surplus
Confirm packaging, storage evidence, label condition and included accessories.
Refurbished product
Confirm the refurbishment source, functional test scope, cosmetic condition and warranty.
Used product
Request clear photographs and available inspection or functional-test information.
Documents & support
Technical references
Manufacturer documentation should be used for engineering, installation, safety and certification decisions. This page supports identification and sourcing; it does not replace the manufacturer manual.
